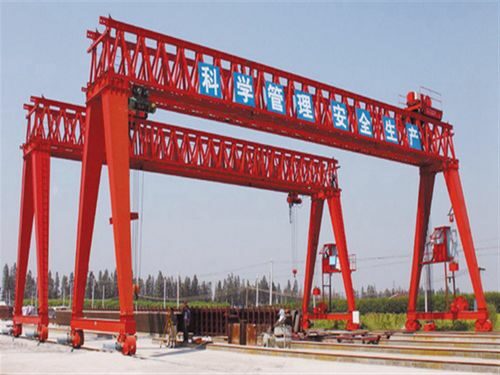

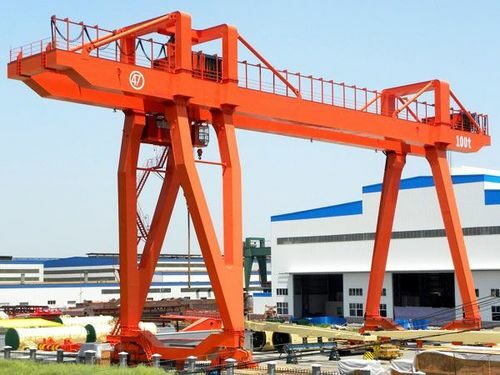

Gantry Crane and Semi-Gantry crane include hoist single/double girder crane and winch trolley double girder crane. The main bridge adopt box-section structure and be optimized by the computer 3D design to be more economic. Lifting tools could be hook, grab and electromagnet etc. And the lifting speed could be adjust by the weight of the load. Cab control and remote control could be chosen.
Load： Max320t
Span： Max50m
Long travelling speed: 3-30m/min
Cross travelling speed: 4-40m/min
Lifting speed: 0.4-16m/min
Specification:
| Load | t | 5 | 10 | ||||||||||
| Span | m | 18 | 22 | 26 | 30 | 35 | 18 | 22 | 26 | 35 | |||
| Load Height | m | 10 | 12 | 10 | |||||||||
| Load Classs | A5(2m) | ||||||||||||
| Speed | Load Height | m/min | 0.8-8 | 0.7-7 | |||||||||
| Load Travelling | 5-20 | 5-20 | |||||||||||
| Cross Travelling | 10-40 | 10-40 | |||||||||||
| Power | Kw | 36.5 | 45.5 | 47 | 56 | ||||||||
| Body Weight | t | 45.5 | 48.4 | 55.4 | 58.5 | 65.4 | 55.4 | 58.6 | 64.9 | 82.8 | 89.1 | ||
| Max Wheel-Pressure | KN | 217 | 230 | 243 | 266 | 289 | 247 | 254 | 261 | 325 | 354 | ||
| Rail | P43 | QU70 | |||||||||||
| Power Supply | 3-phase A.C.50Hz 380V | ||||||||||||
| Diamension | K | mm | 1800 | 1800 | |||||||||
| W | 9000 | 10700 | 9000 | 10700 | |||||||||
| B | 10749 | 13050 | 10749 | 13322 | |||||||||
| BL | |||||||||||||
| A | 650 | 730 | 650 | 730 | |||||||||
| 10000 | 12000 | 10000 | 12000 | ||||||||||
| 14137 | 16137 | 14137 | 16212 | ||||||||||
| 6500 | 7500 | 8500 | 9500 | 10500 | 6500 | 7500 | 8500 | 9500 | 10500 | ||||
| 6500 | 7500 | 8500 | 9500 | 10500 | 6500 | 7500 | 8500 | 9500 | 10500 | ||||
| 4500 | 5500 | 6500 | 7500 | 8500 | 4500 | 5500 | 6500 | 7500 | 8500 | ||||
| 4500 | 5500 | 6500 | 7500 | 8500 | 4500 | 5500 | 6500 | 7500 | 8500 | ||||
| D | 1150 | 1500 | 1150 | 1500 | |||||||||
| E | 870 | 870 | |||||||||||
